1.8TFSI Hybrid (Upgrade) Turbo EA888

3 856,00 5 610,00  excl. VAT

Clear
SKU: N/A Categories: , , , , , , , , Tag:
Description

Upgraded Turbocharger for Audi, Seat, Skoda, and Volkswagen Models with 1.8 TFSI and TSI Engines

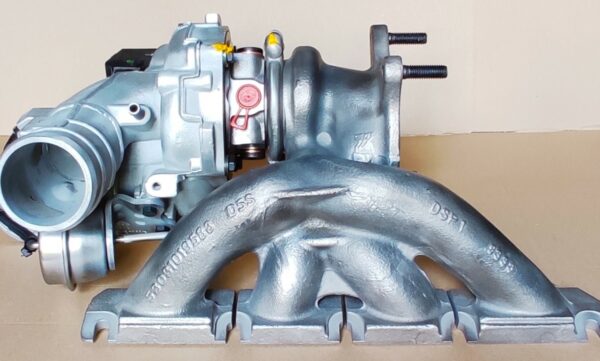

MACHGRADE 1.8TFSI Hybrid Turbocharger. Power range of 250 – 330 Crankshaft Horse Power

The MACHGRADE 1.8TFSI Hybrid Turbocharger is a cutting-edge upgrade for your vehicle, designed to boost performance and enhance your driving experience. This turbocharger is built on the foundation of genuine KKK turbochargers, featuring custom aluminium compressor billet wheels and enlarged turbine wheels. It’s the ultimate plug-and-play solution for various car models, including Audi A3, Audi TT, Seat Altea, Skoda Octavia II, Skoda Superb II, Volkswagen Golf VI, and Volkswagen Passat B6 with 1.8 TFSI engines. With peak power ranging from 250 to 330 Crankshaft Horse Power, this turbocharger offers a significant performance boost.

Specification of the turbocharger

The process of building a MACHGRADE turbocharger involves precision engineering and meticulous attention to detail. One of the key steps in this process is the use of Computer Numerical Control (CNC) machining. This advanced technology allows for precise control over the modification of the compressor housing and seal plate, ensuring a perfect fit and optimal performance.

MACHGRADE 1.8TFSI 250

  • Custom journal bearings ‘360’ – These bearings reduce friction within the turbocharger, allowing it to spin more freely and reach higher RPMs. This results in quicker turbo spooling and reduced turbo lag, providing a more responsive and enjoyable driving experience.
  • Modified compressor housing – This CNC modification allows for the fitment of larger compressor wheels, increasing the volume of air that can be pushed into the engine. This results in higher power output and improved acceleration.
  • Modified seal plate
  • Enlarged/custom compressor Billet Wheel 6+6 blades – These wheels are designed with a specific number of blades, each carefully shaped and angled to maximize the flow of air into the engine. This results in increased power and improved throttle response, enhancing the overall driving experience.
  • Genuine Turbine Wheel clipped and lightened to reduce backpressure – Clipping the turbine wheel reduces backpressure and improves exhaust flow, while lightening the wheel allows it to spin up more quickly. Both of these modifications result in quicker turbo spooling and improved throttle response.
  • Genuine KKK compressor housing, exhaust manifold, and bearing housing
  • Original KKK actuator and DV
  • 100% Plug&Play installation
  • Dynamically Balanced

MACHGRADE 1.8TFSI 300

  • Same modifications as the 250 package
  • Bigger Billet Compressor Wheel
  • Enlarged Turbine Wheel

MACHGRADE 1.8TFSI 330

  • Same modifications as the 250 package
  • Even larger Billet Compressor Wheel
  • Lightened High-Flow 9 Blade Turbine Wheel

Further highlights of the unit:

  • Plug and Play installation
  • Dynamically balanced
  • Genuine KKK parts

Getting expected power

To achieve the estimated power, you need to adjust your fuel, exhaust, and cooling systems. Professional ECU remapping is also required. This is a crucial step in getting the most out of your upgraded turbocharger. By adjusting the engine’s fuel, exhaust, and cooling systems, ECU remapping ensures that your engine can handle the increased air flow and power output provided by the turbocharger. This not only maximizes power gains but also ensures the longevity and reliability of your engine.

Will the turbo be P&P for my car?

The list below presents information helpful for checking if this upgraded turbocharger will be the right fit.

Factory numbers

5303 970 0136
5303 988 0134
5303 988 0112
5303 988 0159
5303 970 0159
5303 988 0123
5303 970 0123

OEM number

06J145701R
06J145701RX
06J145701RV
06J145701P
06J145701L
06J145701G
06J145701B
06J145701H
06J145701J
6J145701JX
6J145701JV
06J145701P
06J145701R
06J145702F
06J145702G


Engines

BYT
BZB
CDAA

Car models

Audi A3 1.8 TFSI (8P) 160HP
Audi A3 1.8 TFSI (8P/PA) 160HP
Audi TT 1.8 TFSI (8J) 160HP
Seat Altea 1.8 TSI 160HP
Skoda Octavia II 1.8 TSI 160HP
Skoda Superb II 1.8 TSI 160HP
Volkswagen Golf VI 1.8 TSI 160HP
Volkswagen Passat B6 1.8 TSI 160HP

Important before you order

  • The average lead time (the time we need to build and ship a hybrid turbocharger) is ten working days.
  • To ensure the right fitment of your turbo, we require the following details of your car:
    • model and year of build
    • stock power
    • VIN number
  • There is one year of warranty for this product. No mileage limit.
    • We build our turbos with a focus on durability and motorsport. The aspect of reliability is paramount to us.
  • We ship worldwide.
  • Do you need a turbo with a different specification? No problem! Learn more about hybrid turbos we can build
    and contact us!
Additional information
Power Range

250, 300, 330
