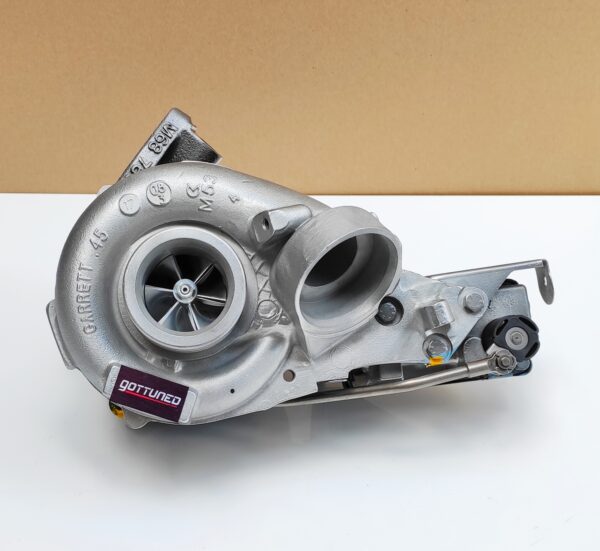

MACHGRADE Hybrid Turbocharger built using 6+6 blade Billet Wheel + Enlarged Turbine Wheel, based on stock Garrett turbocharger from Mercedes 2.2 CDI OM646 engine is the perfect choice for i.a. Mercedes C-Class W203/204 and E-Class W211 for someone looking for a fast daily driver.
There are two versions available of the 2.2 OM646 hybrid turbochargers with a top peak power range of 220 / 250 Crankshaft Horse Power, as follows:
MACHGRADE OM646 220
Hybrid turbocharger ready to make ~220 Crankshaft Horse Power. Full list of changes applied:
- Journal bearings – so-called ‘360’,
- Modification of compressor housing,
- Modification of seal plate,
- Enlarged compressor Billet Wheel 6+6,
- Genuine Garrett clipped and lightened the turbine wheel to reduce the backpressure,
Further common features:
- Quick spool by applying lighter/enlarged Billet Wheel,
- Only oil cooling (there is no water cooling),
- Efficient generation of Variable Nozzle Turbine,
- 100% Plug&Play fitment,
- Precise VNT adjustment,
- Genuine Garrett compressor housing,
- Genuine Garrett exhaust manifold,
- Genuine Garrett bearing housing,
- Genuine Hella electronic actuator,
- Dynamically Balanced.
MACHGRADE OM646 250
Hybrid turbocharger ready to make ~250HP. The full list of changes is the same as with the 220 package with the exception of the Billet Compressor Wheel which is bigger and the Turbine Wheel which is also enlarged.
Performance Capabilities
To reach the declared level of power, you need to adjust your fuel, exhaust and cooling systems as well. Professional ECU remapping is required.
Cars
C-Class 2.2 200CDI W203 122HP
C-Class 2.2 220CDI W203 150HP
C-Class 2.2 200CDI W204 136HP
C-Class 2.2 220CDI W204 170HP
E-Class 2.2 200CDI W211 122HP
E-Class 2.2 220CDI W211 150HP
E-Class 2.2 200CDI W211 136HP
E-Class 2.2 220CDI W211 170HP
Factory numbers
752990-0006
752990-0007
752990-9007S
752990-5007S
742693-0002
742693-5004S
742693-9004S
742693-5003S
742693-5002S
727461-0002
727461-9007S
727461-5007S
727461-5006S
727461-0005
727461-0004
727461-0003
727461-0002
Engines
OM646, OM646 DE 22 LA
OEM numbers
A6460901080
A6460960399
A6460960499
A6460960099
A6460900080
Before you order
- The average lead time (the time we need to build and ship a hybrid turbocharger) is 10 working days.
- In order to manufacture your turbo we require the following details of your car:
- model and year of build,
- stock power,
- VIN number
- Do you need a turbo with different specification? No problem! Learn more about hybrid turbo we can build
and contact us!
