EA211 1.4TSI Hybrid Turbo Upgrade Audi A3 8V, Seat Leon MK3

3 661,00 4 739,00  excl. VAT

Clear
SKU: N/A Categories: , , , , , , , , , , Tag:
Description

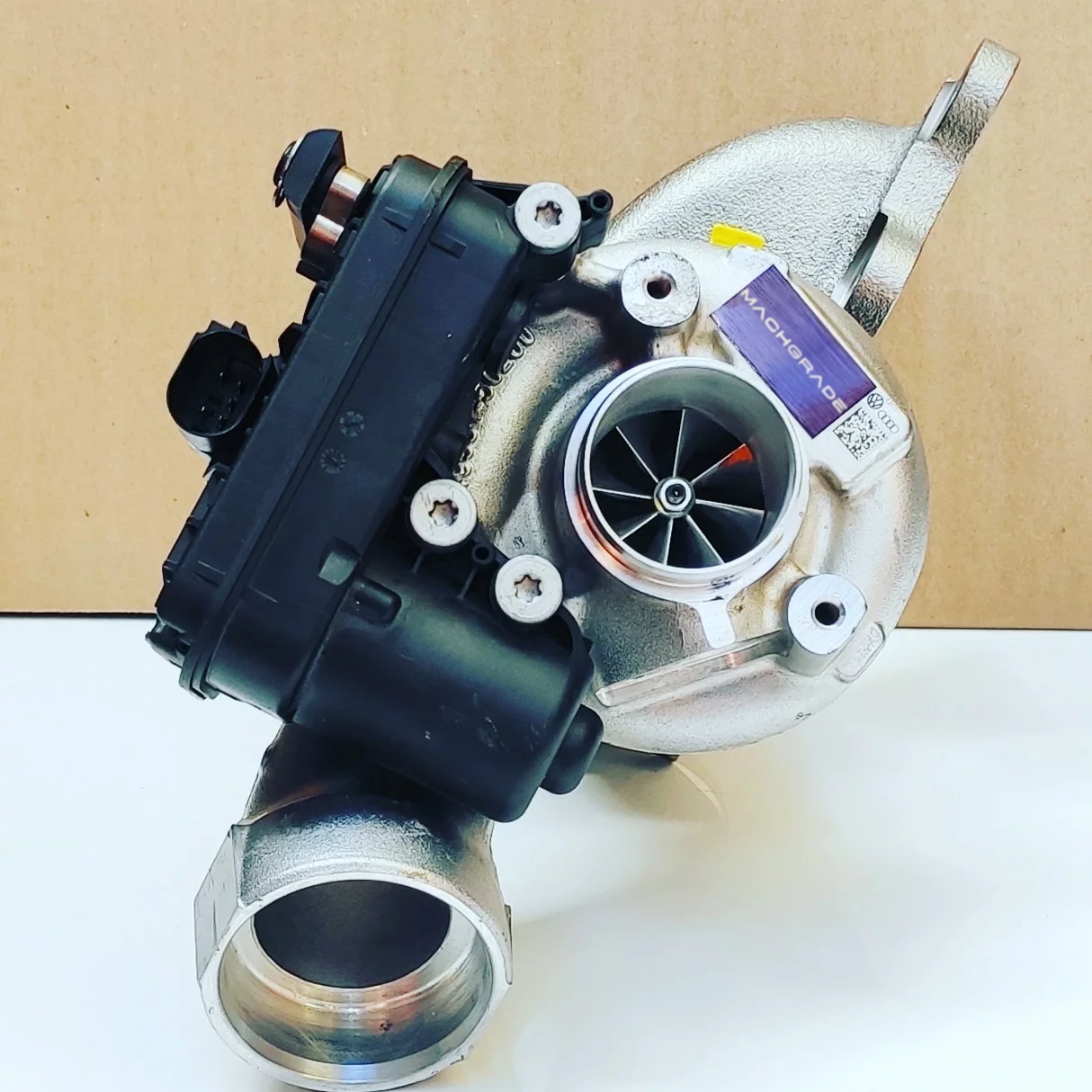

MACHGRADE EA211 Upgraded Turbocharger is built using aluminium Custom Compressor Billet Wheels and Enlarged Turbine Wheels. These are based on the stock genuine Mitsubishi/Mahle/IHI turbochargers and are as a result direct bolt-on upgraded for Audi A3 8V, VW Golf MKV/VI/VII, Skoda Octavia III, VW Scirocco, VW Tiguan, Seat Leon III, Seat Ibiza IV with the EA211 1.4 TSI/TFSI engine.

There are two versions available for the EA211 1.4 Hybrid Turbocharger with a peak power ranging from 220 to 250HP

Specification of the turbochargers

MACHGRADEEA211 220

Hybrid turbo designed to deliver 220HP at the crank.

  • MACHGRADE custom journal bearings ‘360’
  • Modification of the compressor housing
  • Modification of the seal plate
  • Enlarged/custom compressor
    • for IHI turbochargers Billet Wheel 6+6 blades and for Mitsubishi/Mahle Billet Wheel 8+0 Wheel,
  • Genuine Turbine Wheel clipped and lightened to help reduce the backpressure,

Further common features:

  • Genuine Mitsubishi/Mahle/IHI compressor housing
  • Genuine Mitsubishi/Mahle/IHI exhaust manifold
  • Genuine Mitsubishi/Mahle/IHI bearing housing
  • Original Mitsubishi/Mahle/IHI actuator
  • 100% Plug&Play installation
  • Dynamically Balanced.

MACHGRADE EA211 250

Hybrid turbocharger ready to make ~250 Crankshaft Horse Power. The full list of changes applied is the same as with 220 package with the exception of Turbine Wheel which is bigger High-Flow 9 blades one.

Getting expected power

To achieve power output the turbo is optimized for you must ensure all the supporting mods are in place. That means you have to take care of other systems, like:

  • fuel
  • exhaust
  • cooling

ECU remap is necessary to take advantage of hardware upgrades.

Will the turbo be P&P for my car?

The list below presents information helpful for checking if this upgraded turbocharger will be the right fit.

Cars

Audi A1 1.4TFSI 8X 122HP/140HP/150HP
Audi A3 1.4 TSI (8V1/8VK) 122HP/140HP/150HP
Seat Alhambra II 1.4 TSI 150HP
Seat Ibiza IV 1.4TSI 140HP/150HP
Seat Leon III 1.4TSI 122HP/150HP
Skoda Octavia III 1.4TSI 140HP/150HP
Skoda Rapid 1.4TSI 122HP
Skoda Yeti 1.4TSI 122HP
VW Beetle 1.4TSI 150HP
VW CC 1.4 TSI 150HP
VW Golf MK VII 1.4TSI 122HP/150HP
VW Polo V 1.4 TSI 140HP/150HP
VW Sharan II 1.4 TSI 150HP
VW Tiguan 1.4TSI 150HP

Engines

CMBA, CPVA, CZCA,
CPVB, CXSA, CZDD,
CZEA, CZDA, CHPB,
CXSB, CPTA, CUKB,
CAXA, CAXC, CFBA,
BMY, BWK, CAVA,
CDGA, CAVF, CAVD,
BLG, CAVE, CHPA, CZDB


Factory number

49180-01430
49180-01275
49180-01270
49180-01240
9V205

OEM numbers

04E145721F
04E145721B
04E145713A
04E145704P
04E145721R
04E145721RX
04E145721RV
04E145704R
04E145704F
04E145713N
04E145713N
04E145722G

Important before you order

  • The average lead time (the time we need to build and ship a hybrid turbocharger) is ten working days.
  • To ensure the right fitment of your turbo, we require the following details of your car:
    • model and year of build,
    • stock power,
    • VIN number
  • There is one year of warranty for this product. No mileage limit.
    • We build our turbos with a focus on durability and motorsport. The aspect of reliability is paramount to us.
  • We ship worldwide.
  • Do you need a turbo with a different specification? No problem! Learn more about hybrid turbos we can build
    and contact us!
Additional information
POWER RANGE

220, 250
